제품소개PRODUCTS

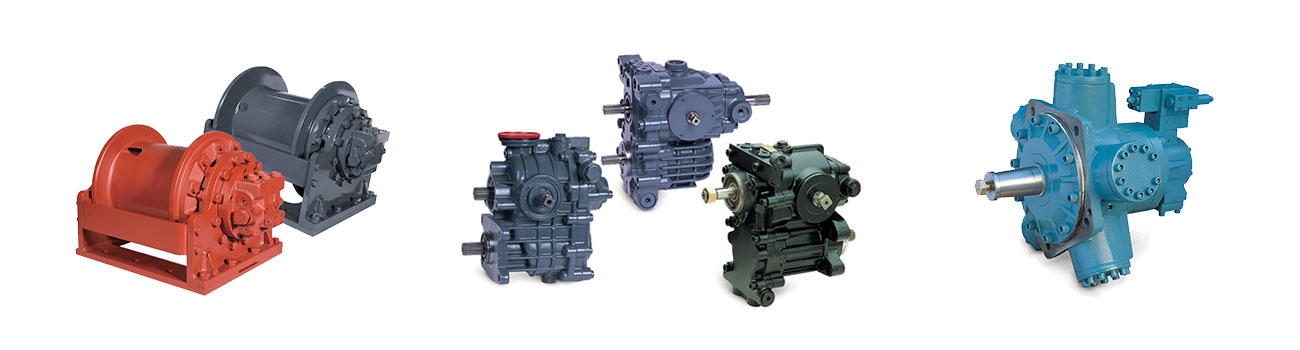

산업용 펌프 모터 및 윈치모터

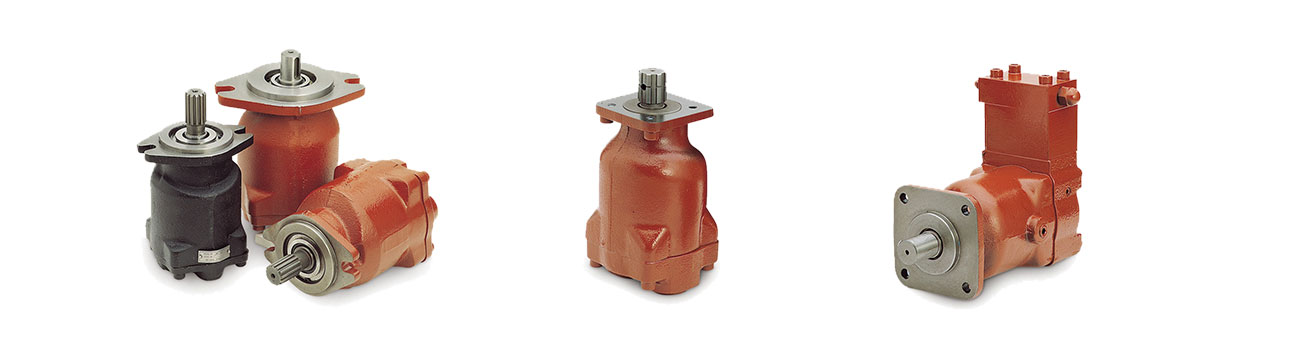

INDUSTRIAL PUMP MOTOR

Specifications

Specifications
MODEL PUMP MOTOR MAX INPUT MAX OUTPUT MAX MAX OUTPUT CHARGE PUMP
DISPLACEMENT DISPLACEMENT SPEED SPEED PRESSURE TORQUE DISPLACEMENT
(cc/rev) (cc/rev) (rpm) (rpm) (kgf/㎠) (kgf·m) (cc/rev)
HPVMF16 16 16 3600 3600 380 6.4 5
HPVMF28 28 28 3000 3000 300 13 6
HPVMF-37 37 37 3000 3000 290 17 7
HPVMF-45 45 45 2800 3200 280 20 8

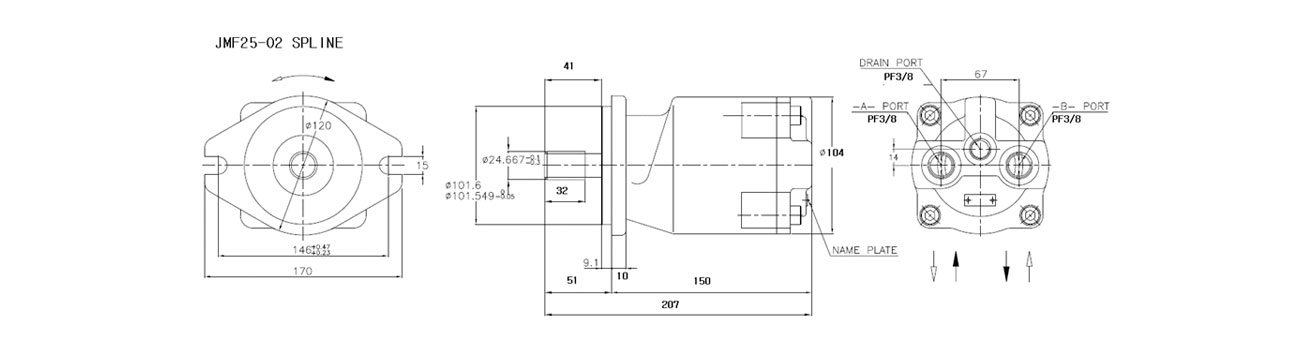

JMF25-01 25 2500 2500 250
JMF36-01 36 2500 2500 250
JMF47-01 47 2000 2000 250
JPF48-01 48 2500 2500 300
JPF54-01 54 2500 2500 300
JPF54-03 54 3000 3000 300

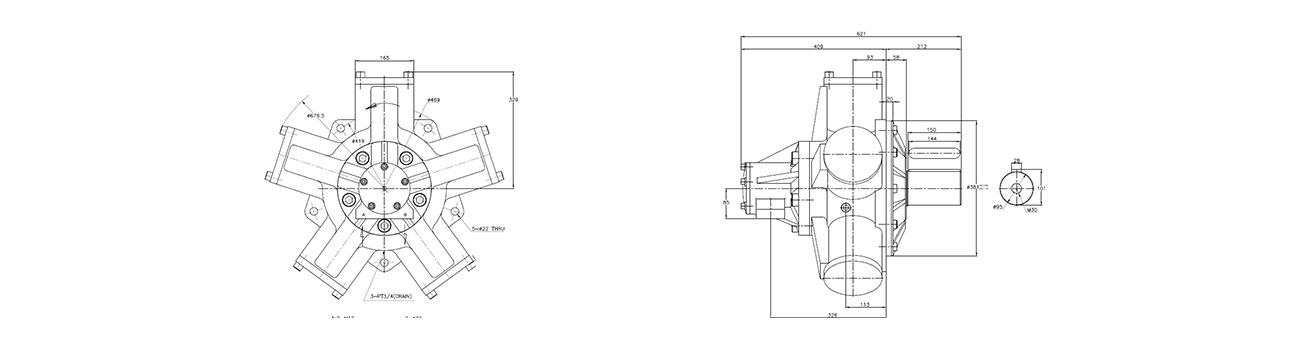

JRC500 499 290 500 250
JRC1200 1206 230 330 250
JRC2100 2099 180 260 250
JRC3200 3203 140 205 250
JMV-48-24 48 3000 3000 210
JMV-48-24 53 3000 3000 210
