제품소개PRODUCTS

주행모터 스윙모터

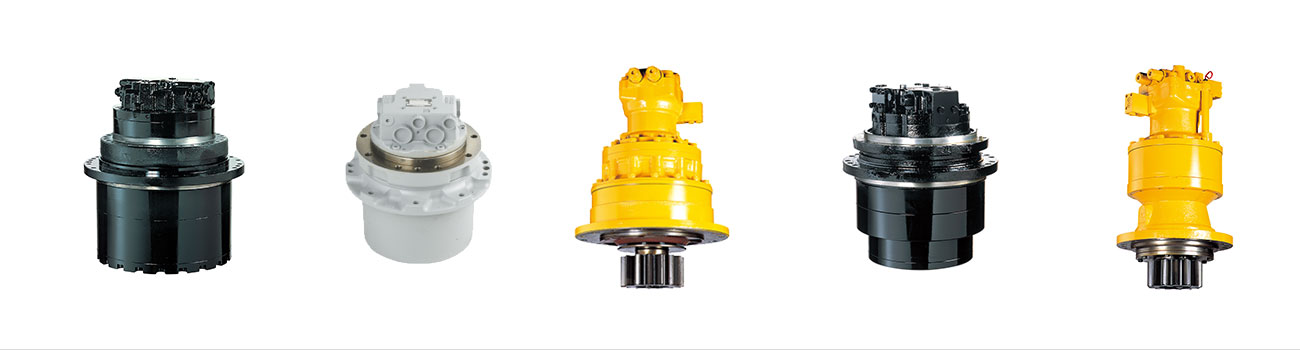

TRAVEL MOTOR SWING MOTOR SERIES

Model Name

Model Name
JSM16-01 JSM29-01 JSM36-01 JSM36-02 JSM43-01 JSM63-01 JSM64-01 JSM68-01
JSM151-01 JSM168-01 JSM233-01 JSM250-01 JSM268-01 JSM330-01 JSM340-01 JSM480-1

Specifications

Specifications

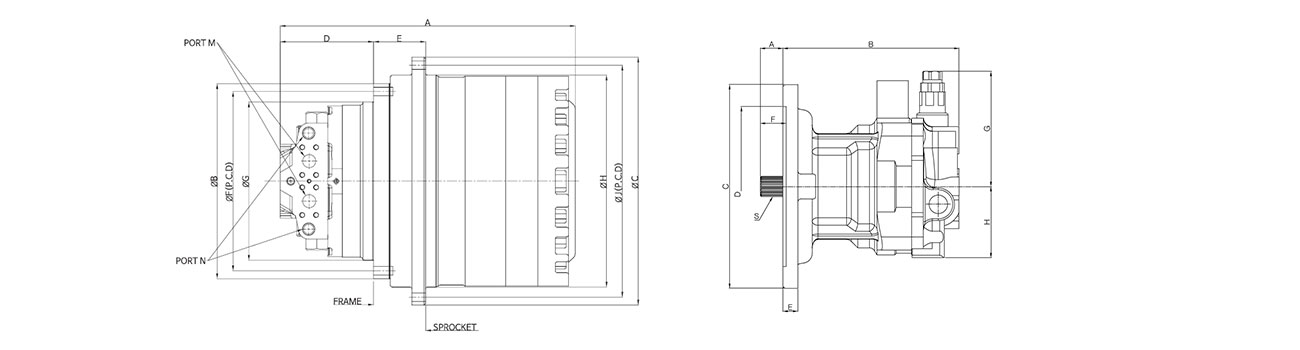

MODEL A B C D E F G H J KG TON
JTM15-02-1.5 190.6 174.5 175 68.5 45 155 140 140 155 2 SPEED 24 1TON/1.5TON
JTM16-01-1.5 214 190 200 74.5 40 170 150 160 180 1 SPEED 24 1.5TON
JTM19-02-2.5 251.5 190 200 97 40 170 150 160 180 2 SPEED 25 2.5TON
JTM20-02-2.5 223 150 200 84 40 170 150 160 180 2 SPEED 25 2.5TON
JTM30-02-16 257.3 215 240 75.5 50 192 165 190 215 2 SPEED 40 3TON
JTM34-02-21 257.3 215 255 65 72 192 165 204 232 2 SPEED 40 3.5TON
JTM35-02-23 257.3 215 255 75.5 50 192 165 204 232 2 SPEED 40 3.5TON
JTM46-02-33 295 263.5 285 98 68 240 200 230 262 2 SPEED 60 4TON
JTM46-9-06 272.7 246 288 82 75.5 220 180 230 262 9HOL 60 4TON
JTM46-12-06 272.7 246 288 82 75.5 220 180 230 262 12HOL 60 4TON
JTM50-02-5 338 268 306 115.5 68 244 210 250 282 2 SPEED 85 5TON
JTM70-02-7 332.5 280 326 115.5 80 250 210 265 300 2 SPEED 90 7TON
JTM80-02-8 348.5 280 326 120 80 250 210 265 300 2 SPEED 90 8TON
JTM100-02-10 388.5 298 362 134 88 270 230 291 332 2 SPEED 110 10TON
JTM110-01-10 399.6 350 394 112.5 83 320 246 324 364 1 SPEED 130 11TON
JTM140-02-14 414.5 350 395 123 83 320 290 324 364 2 SPEED 130 14TON
JTM140-02-15 397 308 394 105 98.5 280 246 324 364 2 SPEED 130 14TON
JTM140-02-16 398.5 308 395 105 99.5 280 246 324 364 2 SPEED 130 14TON
JTM140-02-22 396.2 308 394 106 99.5 280 246 324 364 2 SPEED 130 14TON
JTM220-02-40 547.5 370 470 178.5 98.5 340 300 402 440 2 SPEED FLANGE 300 22TON
JTM220-02-147 520.5 370 470 167 98.5 340 300 402 440 2 SPEED PF 300 22TON
JTM250-02-168 521.5 370 470 167 98.5 340 370 400 440 2 SPEED PF/FLANGE 300 25TON
JTM300-02-154 578.4 460 446 165 112 425 380 446 490 2 SPEED 380 30TON
JTM300-02-155 569 480 525 165 102.5 440 380 450 492 2 SPEED 380 30TON
JTM360-02-185 571 460 525 165 112 425 380 427 490 2 SPEED 400 36TON
